NATIVE-server-R1

The NATIVE-server-R1 is a compact MTCA chassis designed for server applications which comes with a NAT-MCH-G4 including an optional NAT-MCH-G4-CLKP. Moreover, it comprises of a NAT-PM and an integrated NAT-AMC-CCT7 PrAMC (Processing AMC).

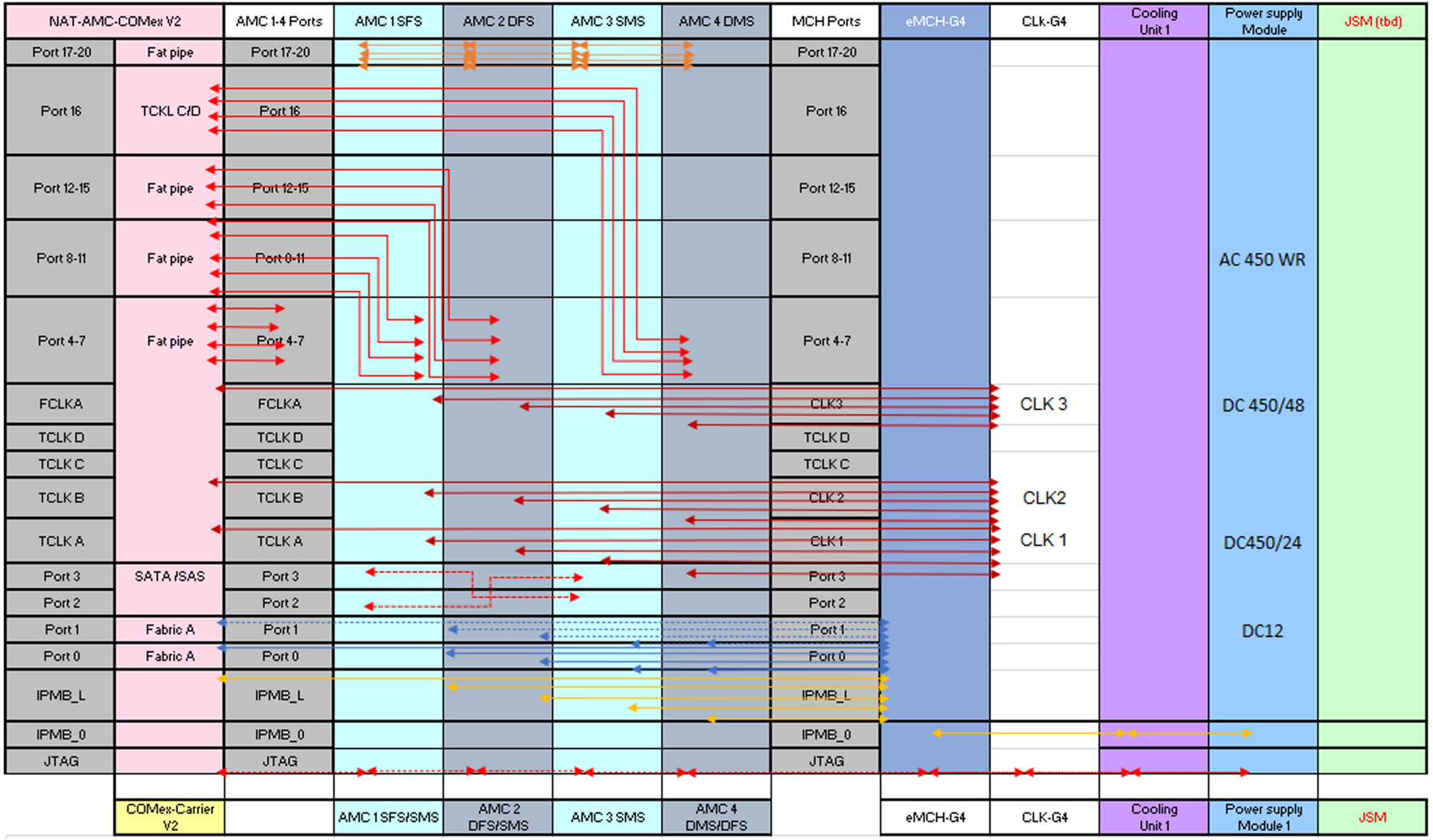

The chassis features four payload slots in total: two slots for double-wide, mid-size AMCs which can handle two RTMs, and two slots for single-width, mid-size AMCs without RTMs.

Main Features NAT-MCH-G4

Basically, the NAT-MCH-G4 is the central management and data switching entity of the NATIVE-Server-R1 and handles power and system management.

The base Ethernet switch features a 1G / 2.5G / 10G Ethernet connection to the NAT-AMC-CCT7 module and all other AMCs in the system. Beyond that, a 1G-25G Ethernet uplink via SFP28-DD is available at the front panel.

In combination with the NAT-MCH-G4-CLKP module, the NAT-MCH-G4 offers several options of switching and manipulating clock signals. Two low jitter Clock multiplexers provide CLK1 and CLK2 to each AMC. CLK3 is executed as PCIe Reference Clock.

The NAT-MCH-G4-CLKP module features two SMA connectors at the front panel. Thereby, it feeds an external CLK signal to the MCH or extracts a CLK generated in the system. The direction of each SMA connector is configurable, the maximum frequency limit (as per MTCA.0 spec) is 100MHz.

As a precision timing assembly option, the NAT-MCH-G4-CLKP-PT module offers an optional GPS receiver with a dedicated SMC connector at the front panel to attach a GPS antenna.

Main Features NAT-AMC-CCT7

The NAT-AMC-CCT7 is an COMExpress (COMex) carrier board for COMExpress Type7 modules. As the name implies, a COMExpress module is a Computer-on-Module, which means, it concentrates the core functionality of an x86 processing system on one single PCB. This includes CPU and memory functionality, graphics, and the most common interfaces.

For storage demands, the carrier owns an M.2 PCIe x4 interface, which offers various options to connect an SSD, FLASH memory, etc. In combination with a graphics module, a second M.2 PCIe x4 interface provides an HDMI interface at the front plate.

Generally, the NAT-AMC-CCT7 features 2x 25G Ethernet via SFP28 at the front panel and 10G Ethernet to AMC Port 0/1. Via FatPipe, it provides PCIe Gen4 x4 to all AMCs in the system.

Different types of COMExpress modules aim for different applications. Thus, the choice of the type determines the application field of the NAT-AMC-CCT7. So the carrier board can work as a general purpose processor AMC (PrAMC), storage, or graphics solution if combined with the appropriate COMExpress module.

Per default, the NATIVE-server-R1 setup provides a NAT-AMC-CCT7 with XE32 (XEON) COMExpress module.

• Form factor: 1U, 19”
• All slots arranged horizontally
• up to 2 single-width, mid-size AMCs
• up to 2 double-width, mid-size AMCs + RTMs

NAT-MCH-G4

• Central management
• Manageable switch: 1/10GbE
• Control LEDs for AMCs, CUs, and PMs
• Support for AMC #13
• Configuration via GUI and CLI
• Telnet and SSH support
• Serial console
• Firmware updates via HPM, free of charge
• Longevity support

NAT-MCH-G4-CLKP:

• CLK1 and CLK2 as Telecom Clocks (TCLK) via two low jitter and low latency clock multiplexer
• CLK3: 100MHz spread spectrum PCIe Fabric Clock (FCLK)
• Programmable PLL
• Hardware build options for IEEE1588 precision timing support incl. OCXO and GPS receiver
• Configuration via GUI and CLI
• Longevity support

Front Panel Interfaces

• 10GbE switch for Fabric A
• 2x 25GbE Uplink at front panel via SFP28-DD
• 10G Ethernet to backplane
• CLK I/O via SMA at front panel
• GPS IN via SMC at front panel as option
• CLK1/CLK2 to each AMC
• CLK3 PCIe RefClock
• Debug via Micro-USB B

NAT-AMC-CCT7

• Atmel Microchip ATxmega128
• Dual 25G Ethernet Controller
• 2x M.2 slot for memory and graphic interface
• Type7 COMExpress -XE32

Front Panel Interfaces

• 2x 25GbE Uplink at front panel via SFP28
• 10G Ethernet to backplane
• CLK I/O via SMA at front panel
• GPS IN via SMC at front panel as option
• 4x USB 3.0

Backplane Interfaces

• 10G Ethernet
• AMC Port 0/1: 10G-KR
• AMC Port 4-7/8-11/12-15/17-20: PCIe Gen4 x4 to all AMCs
• CLK1/CLK2 to each AMC
• CLK3 PCIe RefClock

Cooling Unit

• Integrated Cooling Units including air filter
• Cooling power of 400W @ +55°C operating temperature
• 4 fans for front area, 3 for rear area
• Cooling concept from right to left
