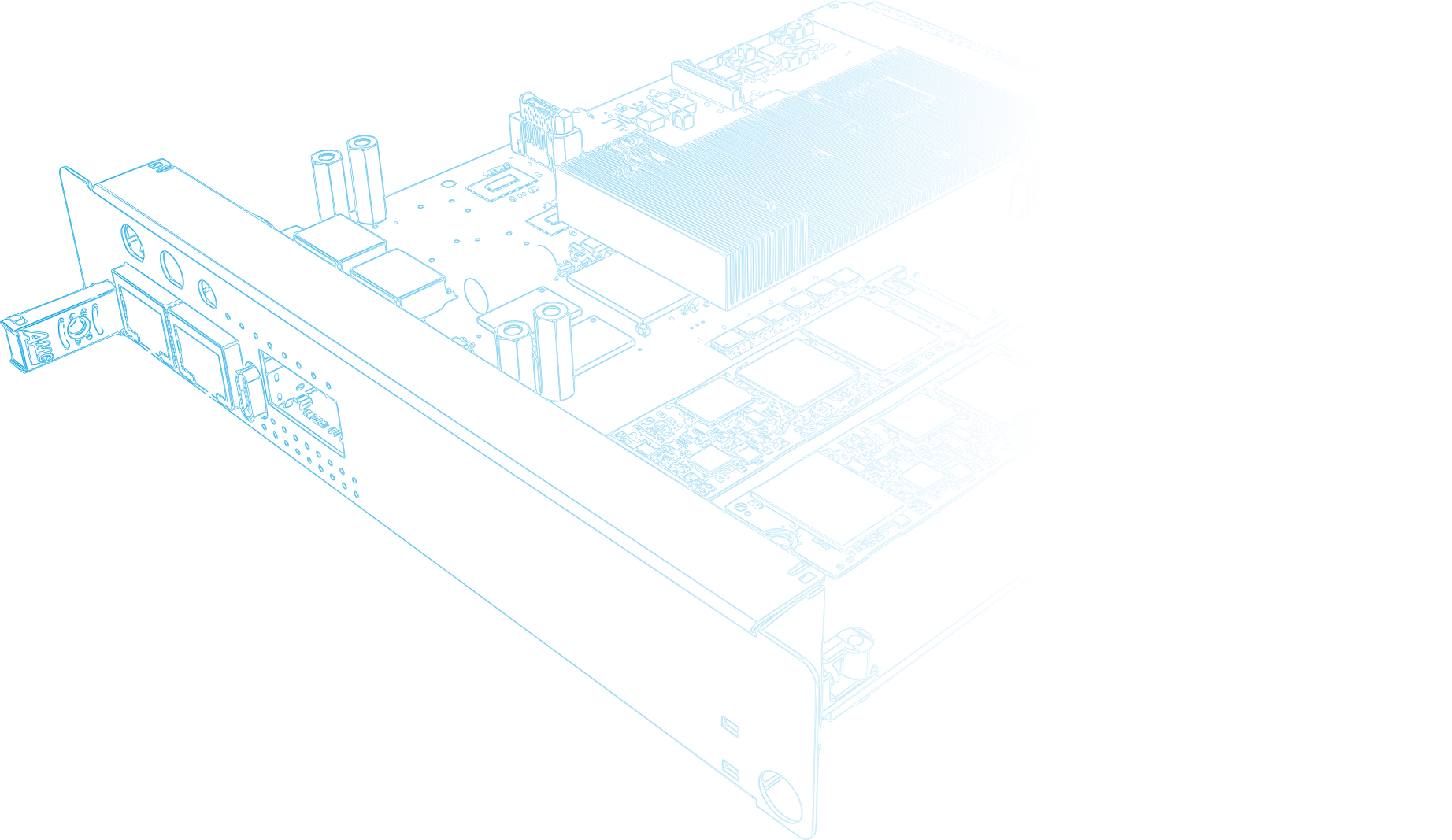

NAT-MCH-SCIxE

The NAT-MCH-SCIxE targets on science applications with special demands on high-speed Ethernet. So the pre-configured MCH package comes with a broad FatPipe bandwidth with up to 40G towards the backplane and up to 100G via front uplink.

The combination comprises of

• NAT-MCH-S4 Carrier Hub (the double-width variant of the NAT-MCH-G4)
• NAT-MCH-G4-CLKP clock mezzanine and
• NAT-MCH-G4-HUB-EX Hub module

The MCH base board features 1G / 2.5G / 10G FabricA connections to each AMC, as well as a two 1GbE available viat two RJ45 interfaces at the front panel. If desired the RJ45 interfaces could be replaced by SFP fibre uplinks as an assembly option.

Two low-jitter clock multiplexers route CLK1 and CLK2 (MLVDS signalling standard). CLK3 is executed as PCIe Reference Clock (100MHz Spread Spectrum Clock, HCSL). A precision timing option consisting of a GPS input and an onboard OCXO is available as seperately orderable assembly option.

The NAT-MCH-SCIxE offers a QSFP-DD front uplink with 8x 1-25G. In combination, these ports make up two x4 ports with 100G each. Towards the backplane, the MCH offers various combinations of high-speed Ethernet connections with up to 40G to fit the demands of the science community.

NAT-MCH-S4 Base Board Features

• Double-width, full-size MCH
• IPMI
• Console via USB and web interface
• 16 LEDs reflecting AMC / CU / PM status
• Firmware update via HPM
• Graphical system and FRU status
• Front Uplink (assembly options):
  • 1-10G Base Ethernet via RJ45 or
  • 1-25G optical Base Ethernet via SFP-28-DD
• Backplane: up to 12x 1GbE / 2.5GbE / 10GbE

NAT-MCH-G4-CLKP Features

• CLK1 / CLK2 (MLVDS): 2x low-jitter cross-point mux
• CLK3: PCIe Ref CLK (HCSL)
• PLL synthesizer
• CLK IN / OUT via SMA
• Optional precision timing support

NAT-MCH-G4-HUB-EX Features

• Marvel 98EX5520 Ethernet Switch
• Front Uplink via QSFP-DD with 8x 1-25G:
  • 2 x4 ports with up to 100GbE or
  • 8 x1 ports with up to 25GbE
• Backplane:
  • 12 x4 ports each 40GbE or
  • 12 x4 ports each 10GbE (XAUI) or
  • 4 x1 ports with 1-10G to each AMC
